SKIDMORE SURVEYING, INC.

BOUNDARY SURVEY:
A survey of the boundary of property according to the description in the recorded deed. Interior improvements such as buildings, drives, etc., are not located. Any improvements along the boundary affecting the use of or title to the property are located, such as fences, drives, utilities, buildings, sheds, streets, etc. Missing corner markers are replaced. A map showing the boundaries and improvements along the boundaries is prepared.

LOCATION SURVEY:
boundary survey with the additional location of all the interior improvements. Missing corner markers are replaced. A map showing the boundaries and improvements is prepared. This type of survey may be required for the acquisition of a loan.

TOPOGRAPHICAL SURVEY:
A survey locating improvements and topographic features such as elevations of the land, embankments, contours, water courses, roads, ditches, utilities, etc. This survey can be used in conjunction with a Location Survey in order to prepare a Site Design Map, a Subdivision Map, or an Erosion Control Plan.

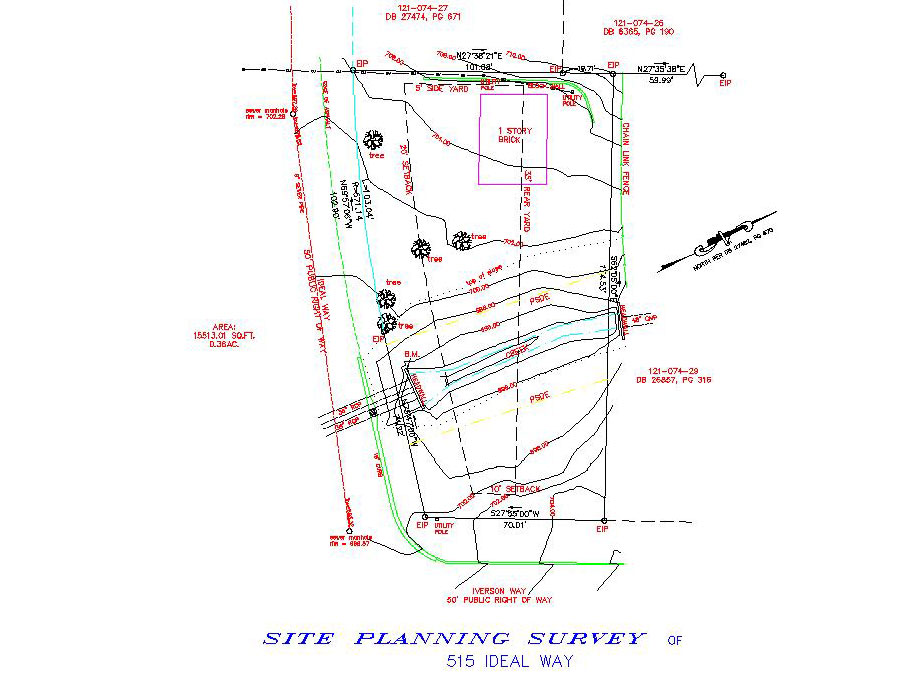

SITE PLANNING SURVEY:
This survey uses a boundary and topographic survey as a base to design future improvements. It can be a design for a house, a residential subdivision, a store, a shopping center, a new street or highway, a playground, or anything else.

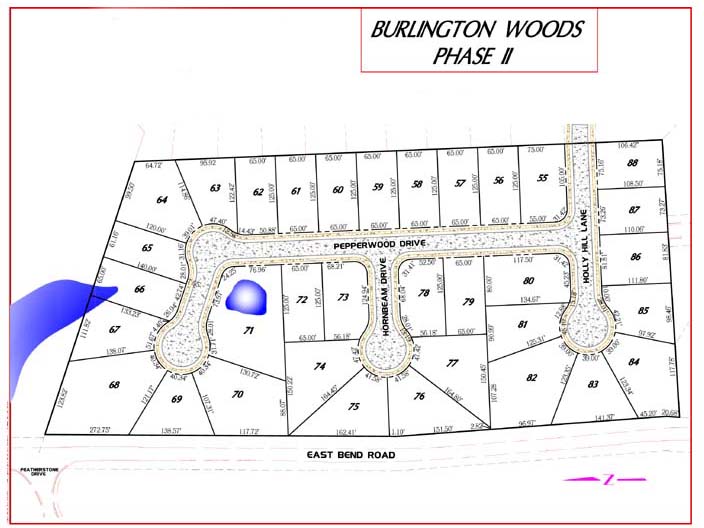

SUBDIVISION SURVEY:
This often includes a topographic survey of a parcel of land which will be divided into two or more smaller tracts, lots or estate division. This can also be used for site design of lots, streets and drainage. It is for construction and recording.

CONSTRUCTION SURVEY:
Using surveying techniques to stake out buildings, roads, walls, utilities, etc. This includes horizontal and vertical grading, slope staking, and final as-built surveys.

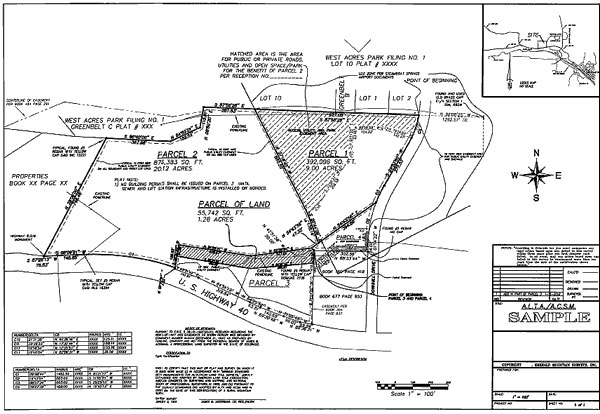

ALTA/ACSM SURVEY:
This is a very detailed survey often required by lending institutions. The request for this survey must be in writing and be included with all of the deeds and easements affecting the property, along with the deeds to adjoining properties. A list of items to be located as noted in the ALTA/ACSM publication can be included.
